Overview
Quick Details
-
Under the guidance of managerial sense of “Serving agriculture, scoring a success through quality of products and honesty in business”, our products have been trusted by clients and have gained a larger share of market.
- Applicable Industries:
-
Manufacturing Plant, farms, Construction works , Fcl Elastic Column Pin Coupling
- Place of Origin:Zhejiang, China
- Brand Name:
-
OEM
- Product name:
-
pin coupling
- Application:
-
Shaft Connections
- Body Material:
-
Cast Iron
- Surface Treatment:
-
Painting
- MOQ:
-
1 Set
- Certification:
-
ISO9001:2008
the needs and requirements of our customers – from standard solutions to customer-specific designs.
- Outer diameter:
-
80-590
- DELIVERY TIME:
-
15-25 Days
- PAYMENT TERM:
-
T/T
- Bore Diameter(d1~d2):
-
Customrize12-38mm
Supply Ability
- Supply Ability:
- 200000 Set/Sets per Month
Packaging & Delivery
- Packaging Details
- standard export packing and wood pallets packing
- Port
- xingang
-
Lead Time
: -
Quantity(Sets) 1 – 200 201 – 2000 >2000 Est. Time(days) Close up of two yokes with the universal joint. Note the slight oozing of grease from the UJ seal ends, the clump of grease is from inside the yoke splined shaft area –Drive (outer) yoke has a female (usual spline) hole and “Y” shape end that is the universal joint (UJ) mount. –UJ is a cross shaped casting having roller bearings enclosed with caps at all four points and is held into the yoke with four “C” clips –Inner yoke and drive shaft is another yoke welded to the drive end, of the drive shaft. –Driven shaft and inner yoke is the driven shaft that rides inside of the drive shaft and has a yoke welded at the driven end –UJ another UJ as above
10 20 To be negotiated
Online Customization
This is Jaw flexible pin & bush coupling .
Feature:
1 FL jaw flexible coupling:
a) Applicable to all types of machinery and hydraulics
b) Small volume and large transmitted torque
c) To be plugged in axially, easy assembly, maintenance-free
d) Balancing axial, radial and angular misalignment
e) Dimensions of bore d,d1 available on customers requests
f) Applicable from -40 to +100°, temperature peaks up to 120°
2.FCL flexible coupling
a)Flexible coupling model FCL is widely used for its compact designing ,easy installation, convenient maintenance, small size and lightweight
b)As long as the relative displacement between shafts is kept within the specified tolerance, FCL flexible coupling will operate the best function and have a longer working life
c)Greatly demanded in medium and minor power transmission systems driven by motors, such as speed reducers ,hoists ,compresses ,conveyers ,spinning and weaving machines and ball mills
dPermitted relative displacementI)Radial displacement 0.2-0.6mm II)Angel displacement: 0°0′ – 1°30′
|

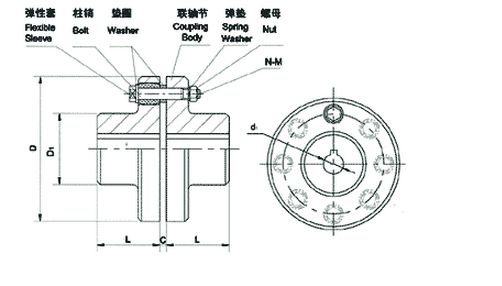

Type |
Max torque |
|
D |
D 1 |
d 1 |
L |
C |
n-M |
Mass |
|
FCL90 |
4 |
4000 |
90 |
35.5 |
11 |
28 |
3 |
4-M8×50 |
1.7 |
|
FCL100 |
10 |
4000 |
100 |
40 |
11 |
35.5 |
3 |
4-M10×56 |
2.3 |
|
FCL112 |
16 |
4000 |
112 |
45 |
13 |
40 |
3 |
4-M10×56 |
2.8 |
|
FCL125 |
25 |
4000 |
125 |
50 |
13 |
45 |
3 |
4-M12×64 |
4.0 |
|
FCL140 |
50 |
4000 |
140 |
63 |
13 |
50 |
3 |
6-M12×64 |
5.4 |
|
FCL160 |
110 |
4000 |
160 |
80 |
15 |
56 |
3 |
8-M12×64 |
8.0 |
|
FCL180 |
157 |
3500 |
180 |
90 |
15 |
63 |
3 |
8-M12×64 |
10.5 |
|
FCL200 |
245 |
3200 |
200 |
100 |
21 |
71 |
4 |
8-M20×85 |
16.2 |
|
FCL224 |
392 |
2850 |
224 |
112 |
21 |
80 |
4 |
8-M20×85 |
21.3 |
|
FCL220 |
618 |
2550 |
250 |
125 |
25 |
90 |
4 |
8-M24×110 |
31.6 |
|
FCL280 |
980 |
2300 |
280 |
140 |
34 |
100 |
4 |
8-M24×116 |
44.0 |
|
FCL315 |
1568 |
2050 |
315 |
160 |
41 |
112 |
4 |
10-M24×116 |
57.7 |
|
FCL355 |
2450 |
1800 |
355 |
180 |
60 |
125 |
5 |
8-M30×50 |
89.5 |
|
FCL400 |
3920 |
1600 |
400 |
200 |
60 |
125 |
5 |
10-M30×150 |
113 |
|
FCL450 |
6174 |
1400 |
450 |
224 |
65 |
140 |
5 |
12-M30×150 |
145 |
|
FCL560 |
9800 |
1150 |
560 |
250 |
85 |
160 |
5 |
14-M30×150 |
229 |
|
FCL630 |
15680 |
1000 |
630 |
280 |
95 |
180 |
5 |
18-M30×150 |
296 |
Company Information
Based on credit principle, the company has established long-term cooperative relationships with a number of customers. At present, the company, by further strengthening staff training, improving technology level and injecting high-tech contents into products, strives to offer products of top quality and preferential prices.
Our main products include rubber tire couplings, roller chain couplings, safety couplings, diaphragm couplings, drum gear couplings, star-shaped flexible coupling, rubber-cushioned sleeve pin coupling, oldham coupling, plum-shaped flexible coupling, roller chain couplings, flexible pin coupling, flexible pin gear coupling, and so on. In order to meet customers’ demands, we, with rich experience, also undertake the plotting and manufacturing of other types of couplings. Under the tenet of “Develop by Technology, Survive by Quality, Benefit by Customers”, the company makes all efforts to provide customers with quality products and satisfactory service through advanced production management and strict quality requirements”.
